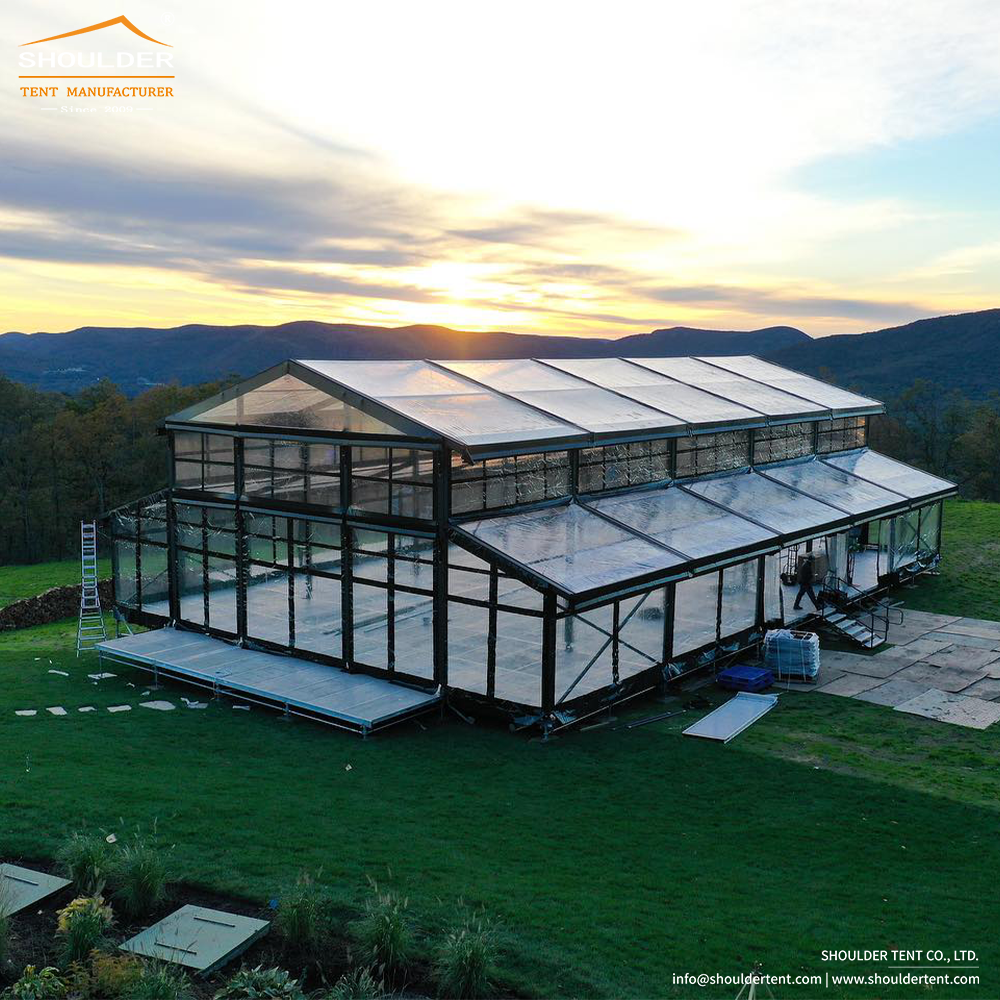

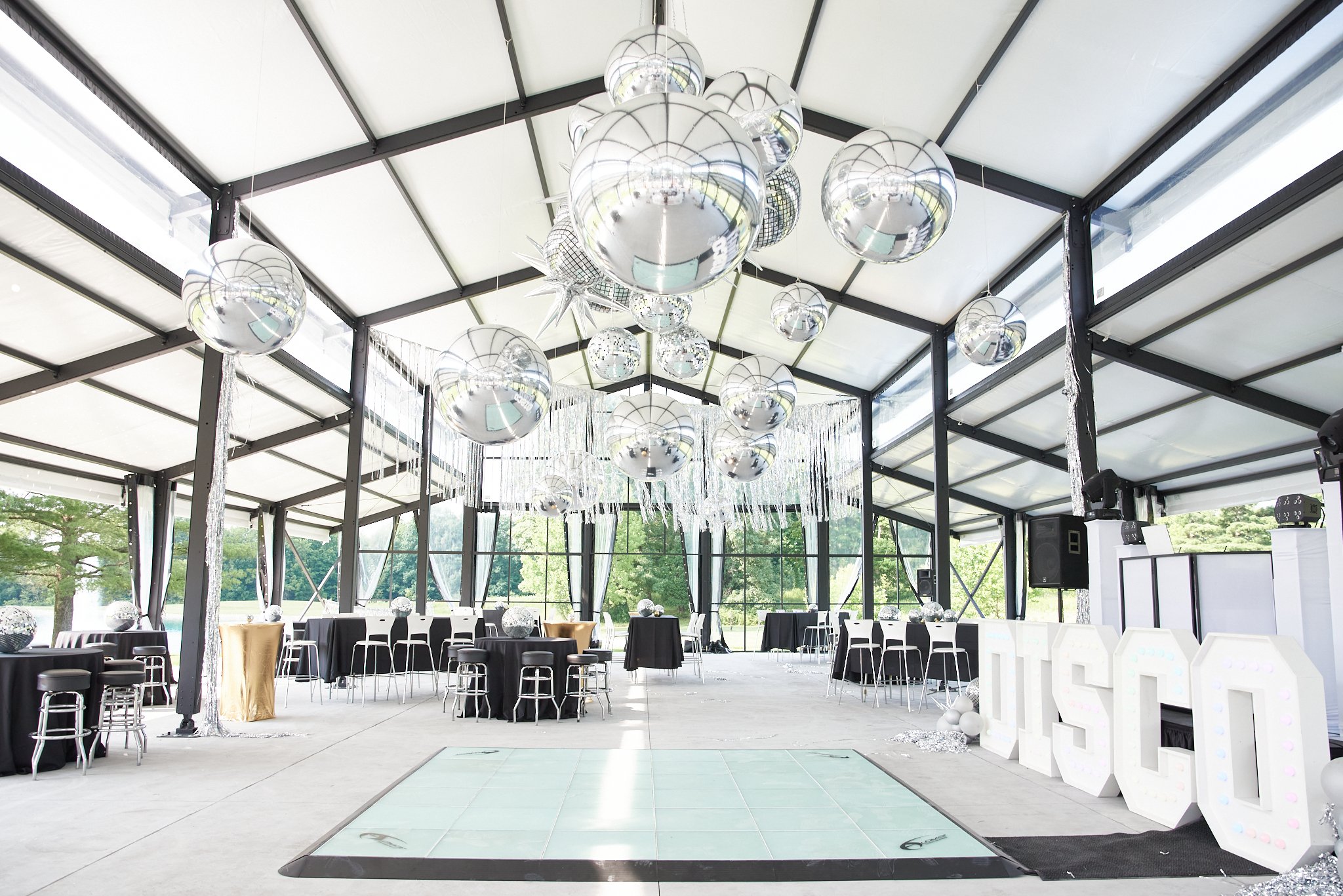

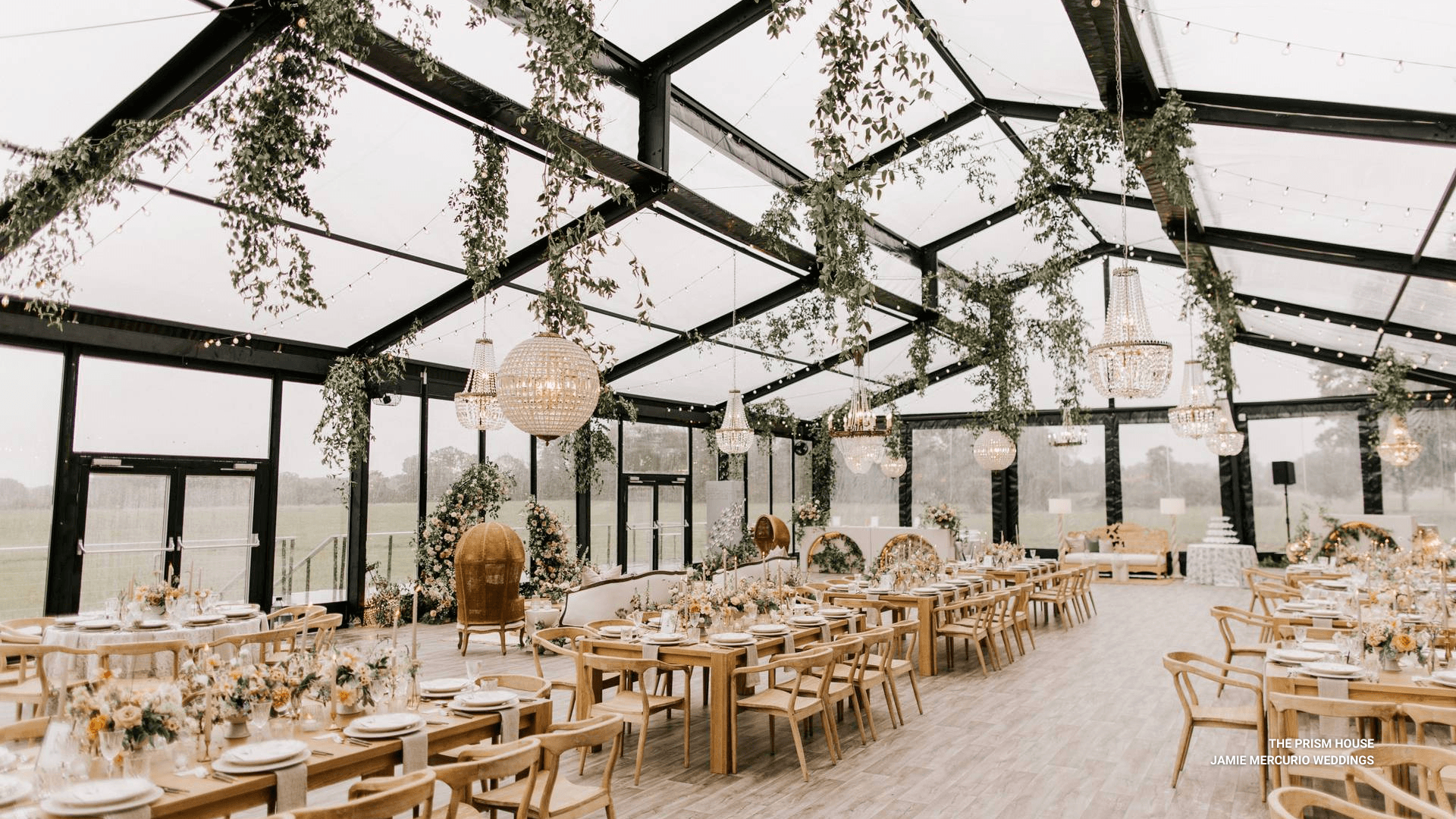

A spacious, open-air structure with a central courtyard, perfect for grand events and gatherings. Its design allows for natural light and ventilation, creating a welcoming atmosphere. It provides a spacious, sheltered area for guests to celebrate, often adorned with decorations to match the wedding theme.
Our big clear span tent is made of aluminum alloy profiles and double coated PVC fabric.
We use the hot-dip galvanized steel connectors, and each bay are scalable, with max wind load up to 100-120 km/hour, and snow load up to 1.9kn/㎡.
It is prefabricated modular design structure which enables short installation period, easy to assembly and disassembly.
Also, a full range of accessories are optional to make it more multi-functional, such as ceiling lining, curtain, glass walls, ABS walls, sandwich walls, glass door, sliding door, rolling door, flooring system, rain gutter system and etc.
1.Frame material: high-anodized aluminum alloy 6061/T6,anti-rust surface.
2.Cover material: double PVC-coated fabric, tear-resistance, flame retardant, waterproof.
3.Advantage: Quick Setup, Movable, Safe Structure, 15-20 years lifespan, free installation guidance, free after-sales services, engineer support.
| Span Width | Side Height | Ridge Height | Bay Distance | Main Profile |
| 15m | 4m | 6.4m | 5m | 166x88x3mm |
| 18m | 4m | 6.9m | 5m | 166x88x3mm |
| 19m | 4m | 7m | 5m | 166x88x3mm |
| 20m | 4m | 7.2m | 5m | 204x110x4mm |
| 22m | 4m | 7.6m | 5m | 204x110x4mm |
